Based on the 6 cylinder HG7 compressor a selection of two stage variants are available for extended use in intense cooling. The selection of the liquid intercooler unit is available for three different refrigerants: R404A (R507), R410A and R22, basically involving different expansion valve assemblies.

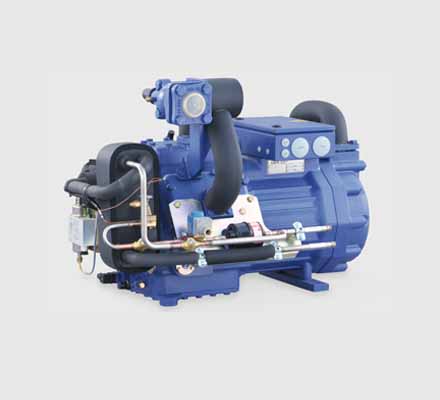

GEA Bock Semi Hermetic Two-Stage HGZ Compressors
Differences to the standard compressor
Special explosion-proof design of the electric components, Connection potential compensation, Special explosion-proof terminal box, Special explosion-proof accessories available
EX-HG12P, EX-HG22e, EX-HG34e, EX-HG44e, EX-HG56e, EX-HG6, EX-HG7, EX-HG8
| Current types | Displacement at 50 Hz (1450 rpm) m³/h | ||
| HGZ7 | 93.7 / 46.9 | 107.6 / 53.8 | 122.4 / 61.2 |
| HGZX7 | 93.7 / 46.9 | 107.6 / 53.8 | 122.4 / 61.2 |
The HGZ7 is available in two options:
Option 1
Intermediate pressure line mounted and insulated.
Liquid supercooler, expansion valve, solenoid valve, two sight glasses, filter dryer, everything enclosed separately for individual, external mounting.
Option 2
Liquid supercooler, expansion valve, solenoid valve, two sight glasses, filter dryer attached directly to the compressor, lined and insulated.
