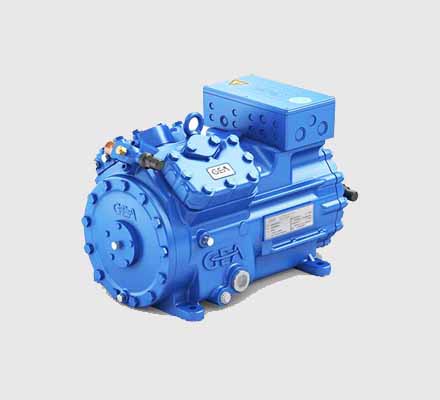

GEA BOCK 5HP HG34e/215 4S Compressors

The GEA Bock HG (Hermetic Gas-cooled) range of semi-hermetic compressors offers tradi-tional suction gas-cooled compressor state of the art technology. These compressors of the highest quality standard excel in their running comfort, easy maintenance, efficiency and reliability. Suitable as standard for conventional or chlorine-free HFC refrigerants.

  • Tolerance (± 10%) relative to the mean value of the voltage range.Ot
  • The specifications for max. power consumption apply for 50Hz operation.
  • For 60Hz operation, the specifications have to be multiplied by the factor 1.2. The max. working current remains unchanged
  • The specifications for max. power consumption apply for 50Hz operation.
  • Take account of the max. operating current / max. power consumption for design of fuses, supply lines and safety devices. Fuse: Consumption category AC3

The HA (Hermetic Air-cooled) range, specially engineered by GEA Bock, is available for deep-freezing applications, in particular for use with the refrigerants R22 and R404A

Type No. of cylinders Displacement 50 / 60 Hz(1450 / 1740 rpm) Electrical data Weight Connections Oil Charge
Voltage Max.Operatingcurrent Max. power consumption Starting current Discharge line DV Suctionline SV
m3/h A kW A kg mm (inch) mm (inch) Ltr
HG34e/215-4 4 18,8 / 22,6 220-240 V ∆ / 380-420 V Y - 3 - 50 Hz
265-290 V ∆ / 440-480 V Y - 3 - 60 Hz
14,0 / 8,1 4,8 87 / 50 92 22 (7/8) 28 (11/8) 1,1
HG34e/215-4 S 18,8 / 22,6 18,3 / 10,5 6,0 132 / 76 97 16 (5/8) 22 (7/8)

One compressor design for all standard refrigerants. For air-conditioning applications, normal refrigeration and deep-freezing. Maximum allowed operating pressure: 28 bar, Gas like R134a, R404A, R507, R407C, R22

High refrigeration capacity combined with minimum power requirement

  • Optimized gas flow
  • Efficient service valves
  • Minimum clearance volume
  • Powerful economic drive motors
